Model
DCM-K01
Rated Parameters(AC)
100-250V, 50/60Hz/Max.10A, Max 2500W (Incandescent Lamp); Max. 1A, Max. 250W (LED, CFL Fluorescent Lamp); Max. 1A, Max. 1/4 HP (Motor) M.1.
Rated Parameters(DC)
24-30V: Max.10A, Max. 300W (Resistive Load); 30-60V: Max.1A, Max. 60W (Resistive Load);
Wireless Protocol
Zigbee
Zigbee Operation Frequency
2405-2475 MHz
Zigbee Maximum Output Power
≤ 13 dBm

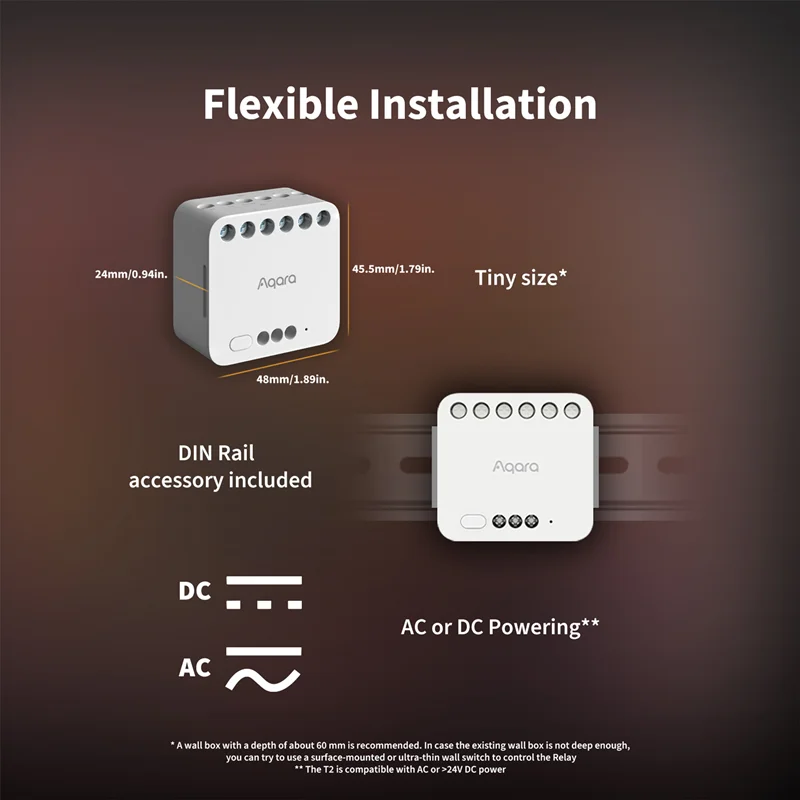

Dimensions
45.5 × 48 × 24 mm (1.79 × 1.89 × 0.94 in.)
Operating Temperature
-10°C ~ 40°C (14°F ~ 104°F)
Operating Humidity
0 ~ 95% RH, no condensation

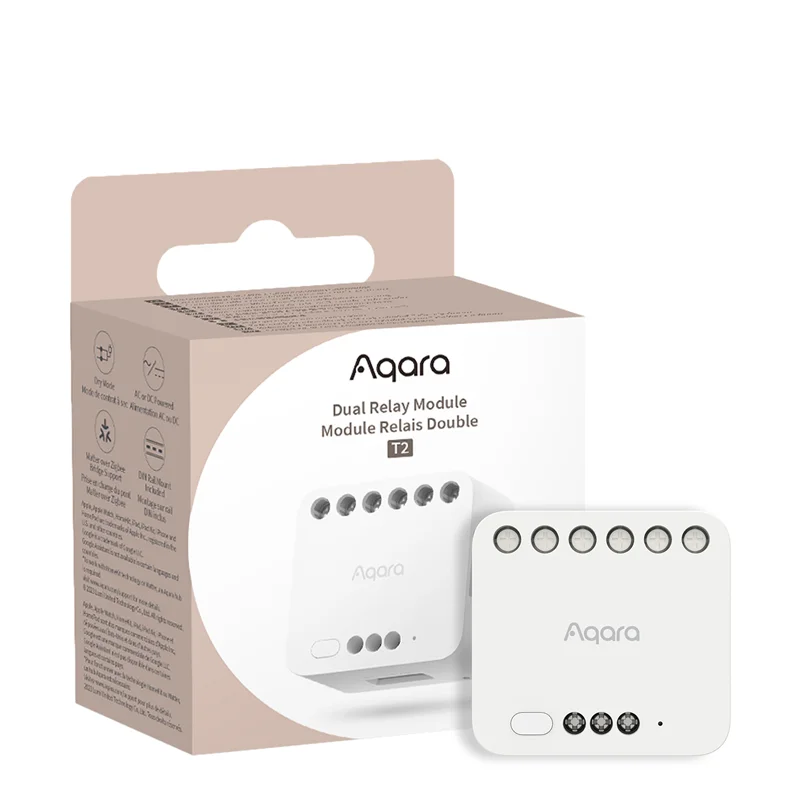

What is in the Box
Dual Relay Module T2 × 1, User Manual × 1, DIN Rail Accessory × 1, Jumper Wire × 1
